Blue Light Shield Film
To block light of 380~500nm wavelength, significantly reduce eye fatigue, and use that comfort and prevent damage to the retina.
Structure(Option by customer)

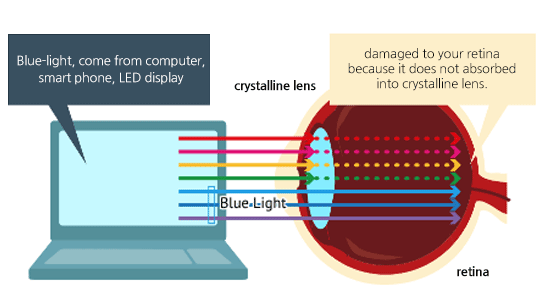

Blue-light, come from computer, smart phone, LED display
damaged to your retina because it does not absorbed into crystalline lens
- PET Protective Film(50㎛)+Si Layer(7㎛)
- BLC Coating+Hard coating Layer(2~8H)
- PET Film 100~250㎛
- Silicone Layer(20~30㎛)
- PET Protective Film(50㎛)
Specification
| Property | Test Method | Unit | Value | Note | |
|---|---|---|---|---|---|
| Material | Base Film(Optical PET) | ㎛ | 100 | ||
| Optical | Transmittance | JIS-D7105 | % | ≥ | At 550nm |
| Haze | JIS-D7105 | % | ≤ | ||
| Physical | Pencil Hardness | ASTM D3363 | 2H~8H | ||
| Adhension | 1㎜ Cross Cut/10 Times | 100/100 | |||
| Packaging | Wide | ㎜ | 1040 | ||
| Length | m | 200 | |||
